Parameters
What's included:
• x1 Linear-36 Double LED Lamp

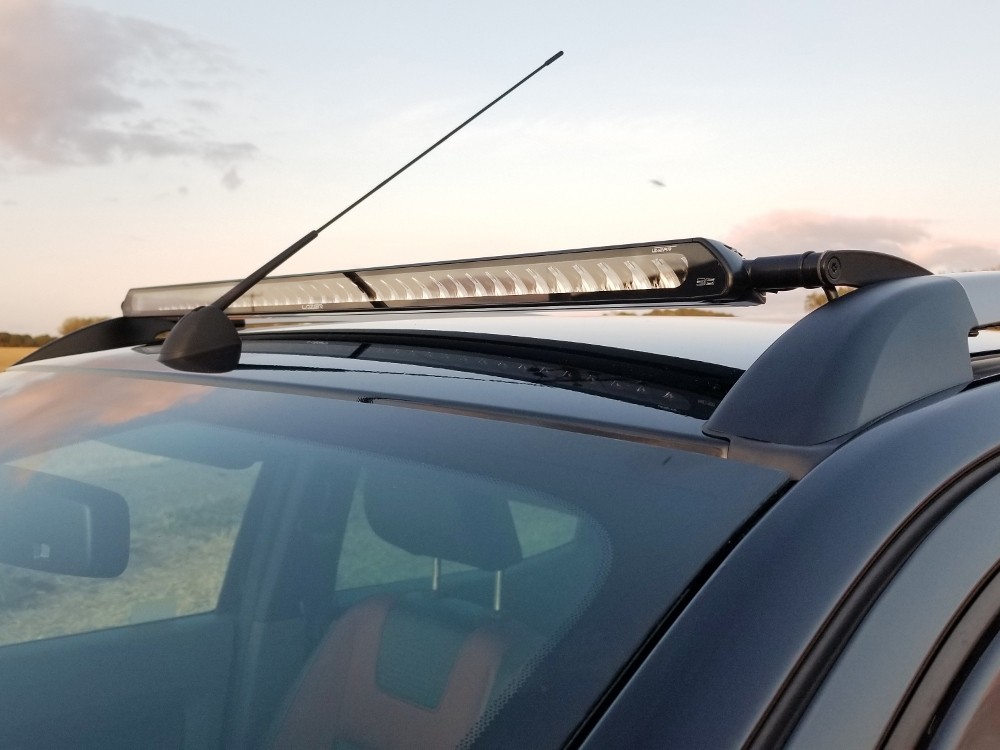

• x2 Special Mount for Roof Rails, with the needed Screws
• x1 Wiring Harness, with Switch and Relay
| Technical data: | |
| Voltage Range | 9-32V |
| LED Life | 50,000 hours |
| Weight | 2.7 kg |
| HIGH BEAM FUNCTION | |
| Total Luminous Flux | 13500 Lm |
| Number of High Output LEDs | 36 |
| Power Consumption | 126 Watts |
| Current Draw (at 14.4V) | 8.8 Amps |
| CERTIFICATION | |
| High Beam | ECE R112 |
| ECE Reference | 50 |
| DIMENSIONS | |
| Width | 982 mm |
| Depth | 62 mm |
| Height | 40 mm |
| PHOTOMETRIC DATA | |
| 0.25 lx Line | 940 metres |
| 0.5 lx Line | 665 metres |
| 1 lx Line | 470 metres |
| 3 lx Line | 271 metres |
| BEAM SPREAD | |
| Horizontal | 50 degree spread |
| Vertical | 20 degree spread |
